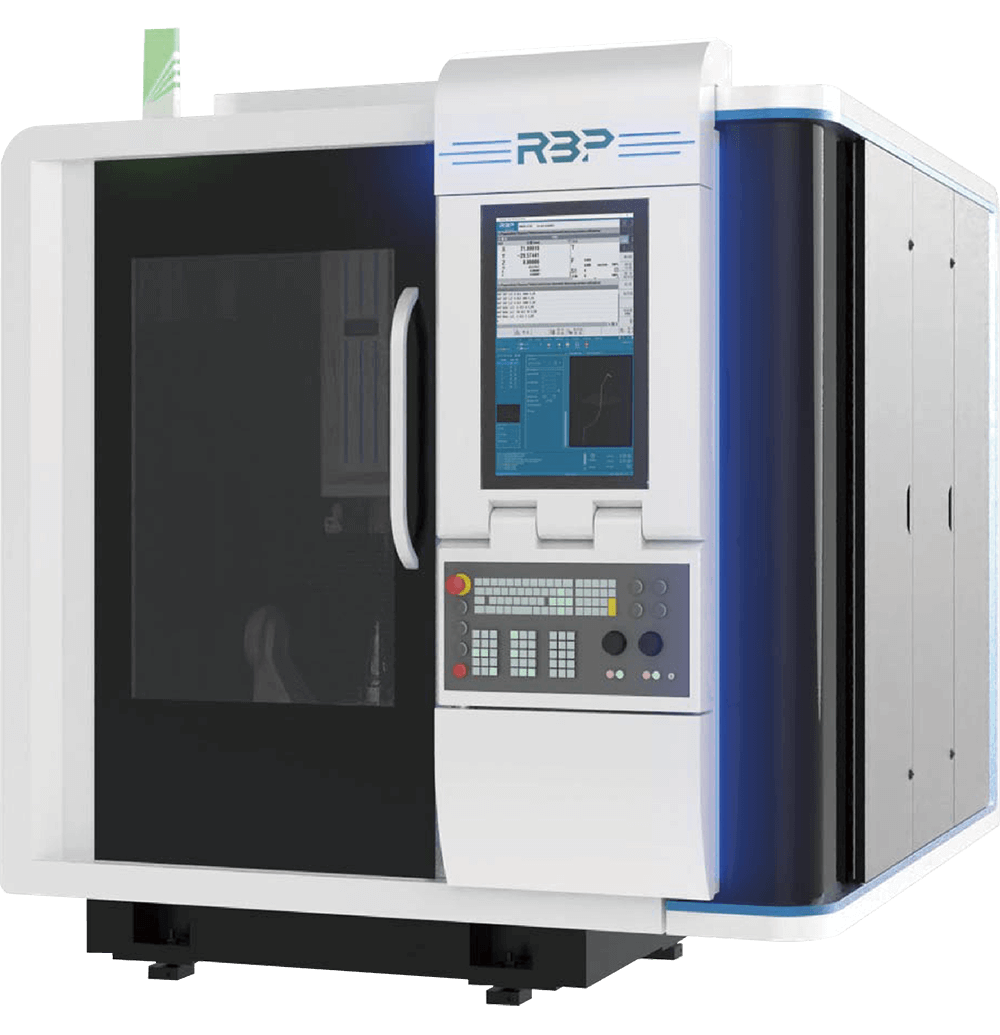

Five-Axis Laser Tool Processing Machine LFS-M80
High-precision hardware combined with linear motors for high-speed, high-accuracy machining;
Siemens five-axis control system integrated with proprietary, in-house-developed laser CAM software;
Superior cutting-edge quality, high profile accuracy, and excellent process stability;
High-rigidity machine bed with excellent thermal stability, ensuring consistent machining accuracy and stability.
Details
Application industry:
The LFS-M Series specializes in machining complex profiles on diamond form tools for the 3C industry. It is suitable for cutting-edge machining, profile turning, and 3D form machining of superhard materials and tools made from PCD, CVD diamond, MCD, PCBN, and similar materials.
Laser technology:
Contour Turning with a Single-Point PCD Tool

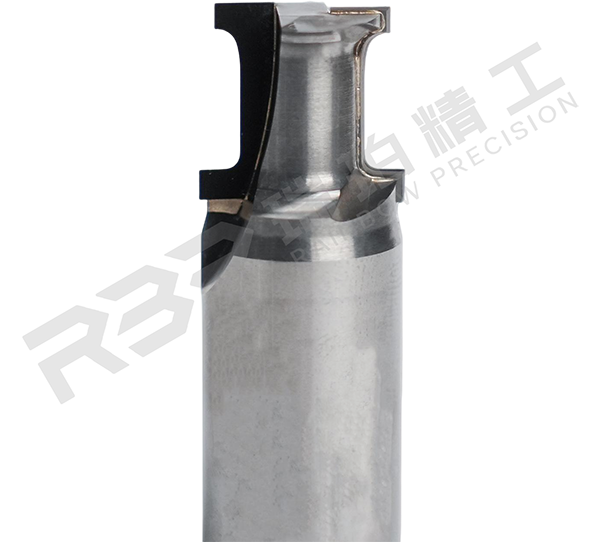

Contour Turning with a Two-Flute PCD Tool

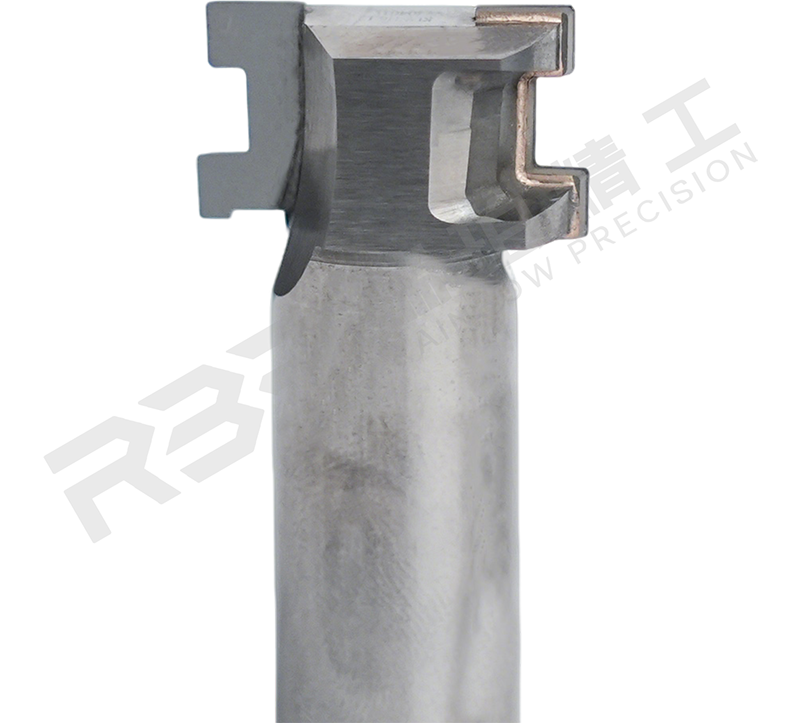

Contour Turning with a Two-Flute PCD Tool

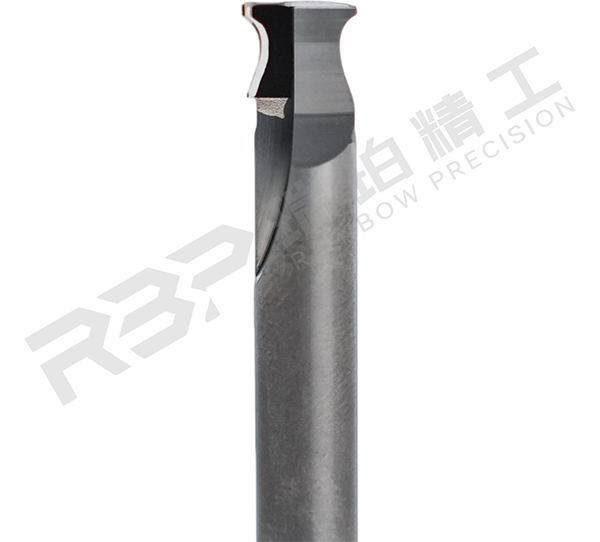

Contour Turning with a CVD Insert

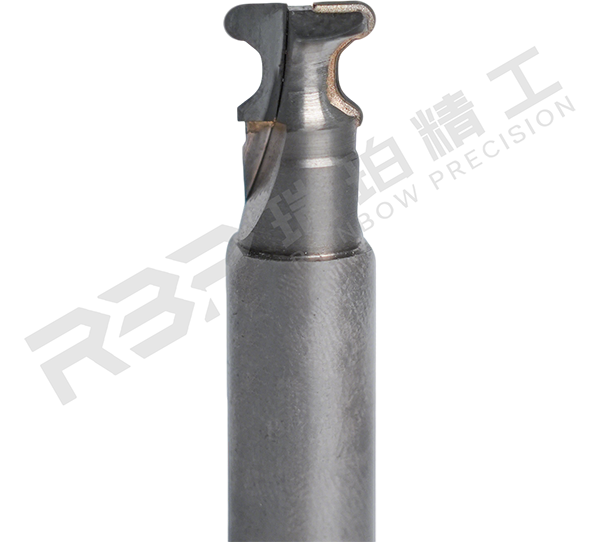

Milling with a Two-Flute PCD Radius End Mill

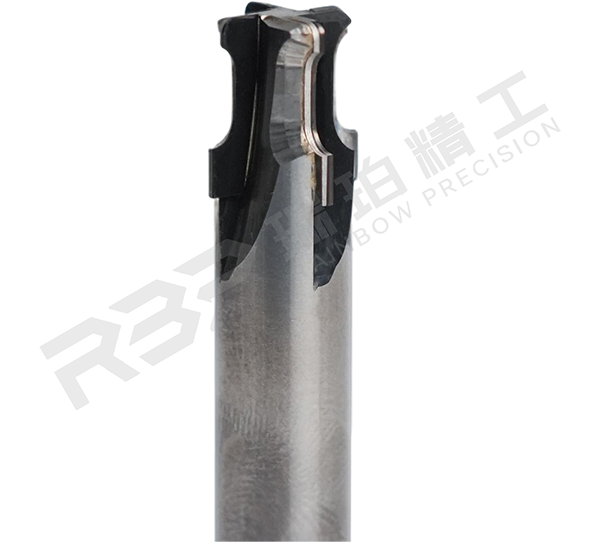

Turning with a CVD Insert with a 0.01mm Tool Nose Radius
Spherical Turning with a PCD Tool

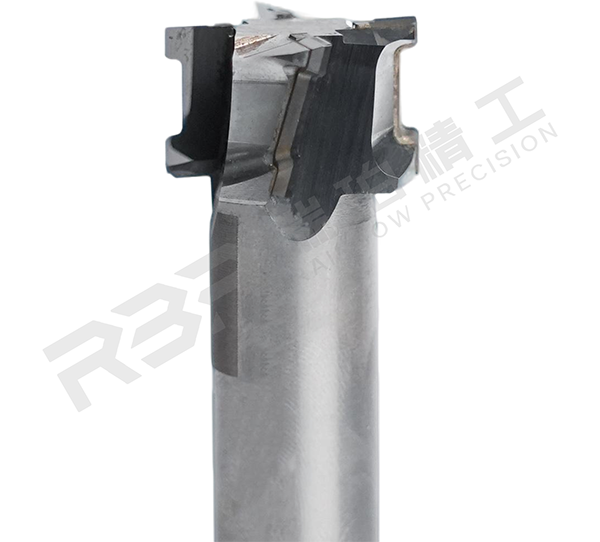

Contour Milling with a Four-Flute PCD Staggered-Tooth Cutter
Turning with a CVD Insert with a 0.01mm Tool Nose Radius
Spherical Turning with a PCD Tool
Micro-Edge Fabrication on a PCD Ball Nose Tool

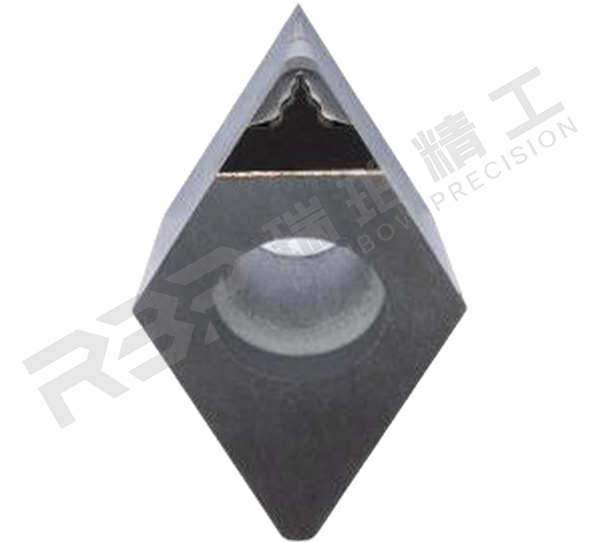

Chip Breaker Grooving on a PCD Turning Tool
Micro-Edge Fabrication on PCD Tools
| Types | Parameters |
|---|---|
| Motion Control | X/Y/Z positioning accuracy: ±1 μm; A/C rotary-axis accuracy: ±2 arcsec. |
| CAM Software | Generates 5-axis spatial toolpaths from imported 2D profiles. |
| Machining Progress | Contour accuracy: ±5 μm |
| Cutting Edge Quality | At 500× magnification: edge chipping < 1 μm; edge hone (passivation) < 3 μm |
